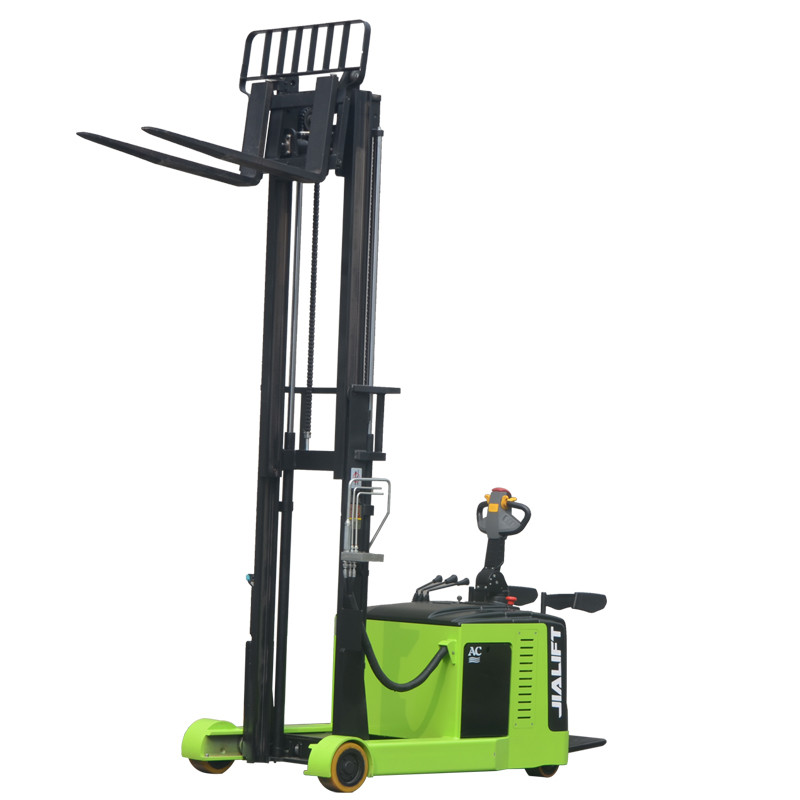

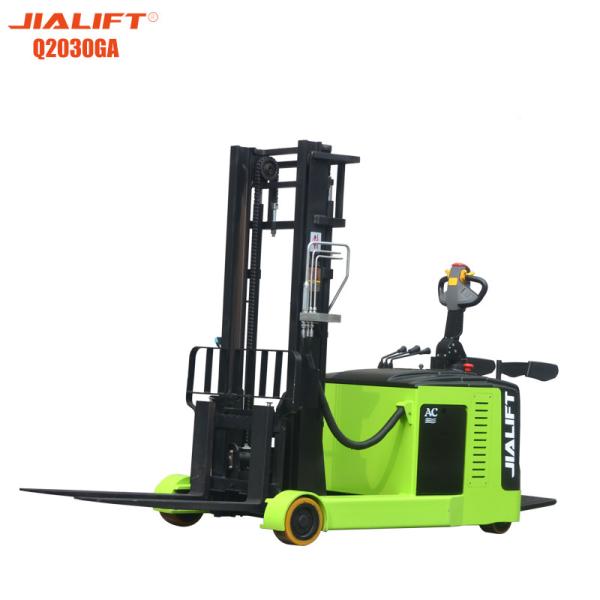

Electric High Reach Forklift Reach Truck 2000kg Lifting Height 3000mm

Name: Electric High Reach Forklift Reach Truck 2000kg Lifting Height 3000mm
Brand: JIALIFT
Price: 1 USD

China Electric High Reach Forklift Reach Truck 2000kg Lifting Height 3000mm wholesale

Brand Name : JIALIFT

Model Number : Q2030GA

Certification : CE，UL

Place of Origin : CHINA

MOQ : 1

Price : Negotiation

Supply Ability : 200 units per day

Delivery Time : 3 days

Packaging Details : Pallet or container

Load Capacity : 2000kg

Battery : Lead acid/Li-lon

Drive motor,60 minute rating : 2.5kw

Lift motor rating at S3 15% : 4.5kw

Battery voltage/rated capacity : 24/280V/Ah

Battery weight (±5%) : 275kg

Noise level at operator 's ear : ≤75dB(A)

Contact Now

Electric reach stacker(Standing on) Q2030GA Rated traction weight 2000kg Lifting height 3000mm Electric Reach Forklift

Electric Reach Forklift Q2030GA&Q2060GA.pdf

Electric reach stacker(Standing on) Q2030GA Rated traction weight 2000kg Lifting height 3000mm Electric Reach Forklift

Product Features
1.Imported AC controller ,Germany ZF verticalgearbox;
2.With self-diagnostic function,the handheld unit andthe controller can display fault code,and quicklyaccurately troubleshoot;
3.You can choose full-free upgrading,which isconvenient for vehicles to have restriction in thecontainer or other ceiling;
4.The front wheel uses a large wheel design,thevehicle chassis is improved,the secondary wheel onboth sides of the drive wheel provides a safe aid forthe chassis,making the whole vehicle have bothstrong obstacles,and no stability.Operation is moreflexible;
5.Standard the lifting limit function,when the fork israised to the item,the system automatically cuts offthe uplink power supply,smooth parking,effectivelyprevents the occurrence of "tweakstorm"accidents.

Characteristics

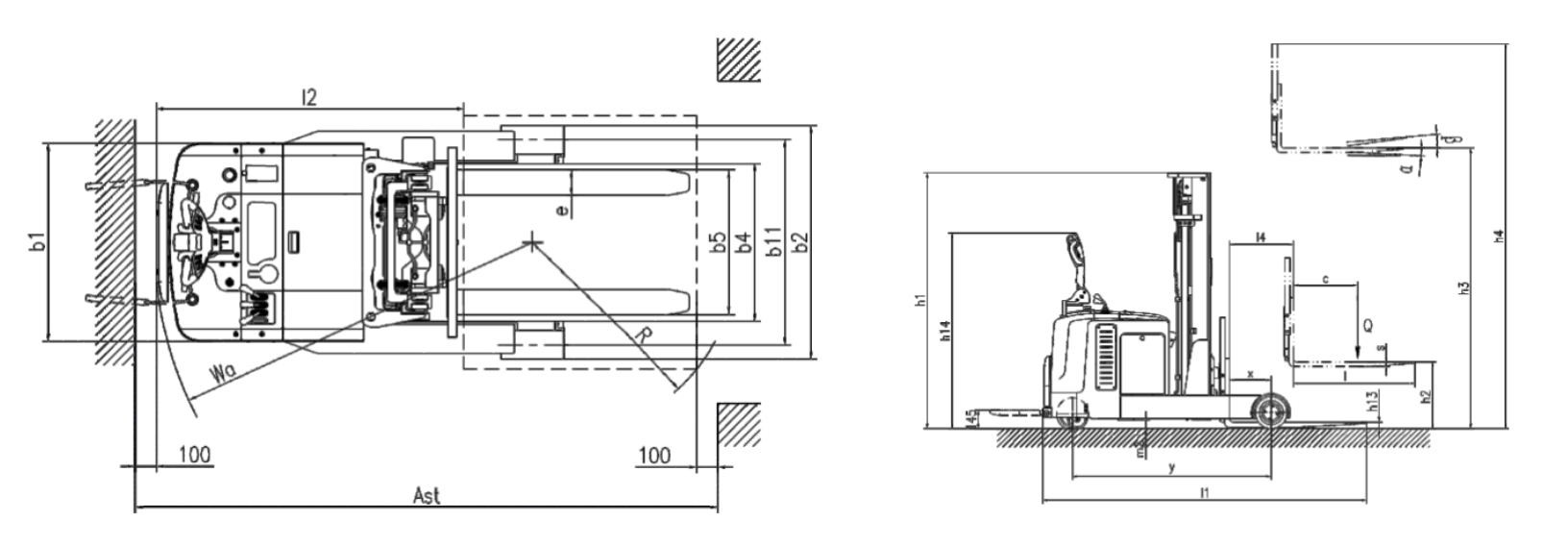

Model		Q2030GA
Power unit		Electric
Operation		Standing on
Rated traction weight	Q(kg)	2000
Load centre	c(mm)	500
Axle centre to fork face	x(mm)	324
Wheel base	y(mm)	1554
Service weight with battery	kg	2750
Wheels/Tyres
Wheels type		PU
Driving wheel size	Φ×w(mm)	Φ250×127(PU)
Bearing wheel size	Φ×w(mm)	Φ250×120
additional wheels(dimensions)	Φ×w(mm)	Φ149×60
Wheels,number front/rear(x =driven)		1,4/2
Track width	b10(mm)	665
Track width	b11(mm)	976
Dimensions
Mast/fork carriage tilt,forward/backward	a/b(°)	3/5
Height of mast,lowered	h1(mm)	1995
Free lift	h2 (mm)	0
Lift	h3(mm)	3000
Height of mast,extended	h4(mm)	3860
Overall height(With handle	h14(mm)	1075/1502
Lowered fork height	h13(mm	40
Overall length	l1 (mm)	2530
Length to fork face	l2 (mm)	1460
Overall width	b1/b2 (mm)	940/1100
Fork dimensions	s/e/l(mm)	40/120/1070
Width of forks	b5(mm)	240-715
Distance Between Suporrts arms/loading surfaces	b4(mm)	746
Reach distance	l4(mm)	500
Min.Ground clearance	m2(mm)	48
Aisle width with pallet 1000 x1200 across forks	Ast (mm)	2900
Aisle width with pallet 800x 1200 along forks	Ast (mm)	2960
Min.Turning radius	Wa(mm)	1800
Performance
Travel speed,laden/unladen	(km/h)	5.2/5.5
Lifting speed,with/without load	(mm/s)	90/120
Lowering speed,with/without load	(mm/s)	120/130
Maximum climbing ability,with/without load	(%)	6/8
Service brake		Electromagnetic
Drive
Drive motor,60 minute rating	(kW)	2.5
Lift motor rating at S3 15%	(kW)	4.5
Battery voltage/rated capacity	V/Ah	24/280
Battery weight (±5%)	(kg)	275
Other
Type of drive control		AC
Noise level at operator 's ear	(dB(A))	≤75
