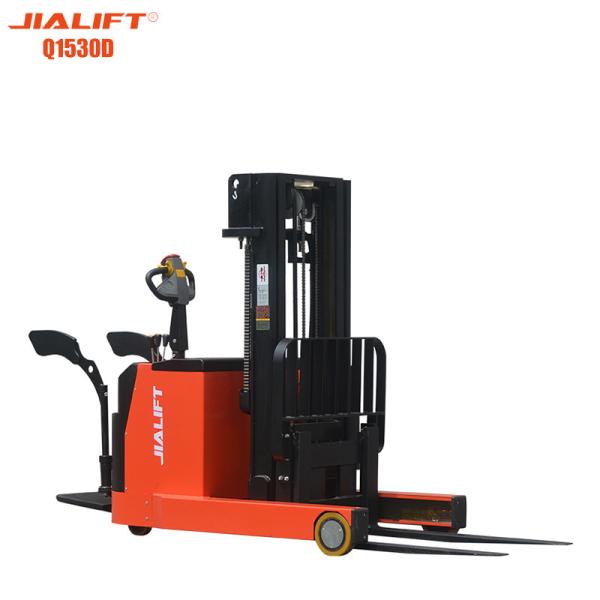

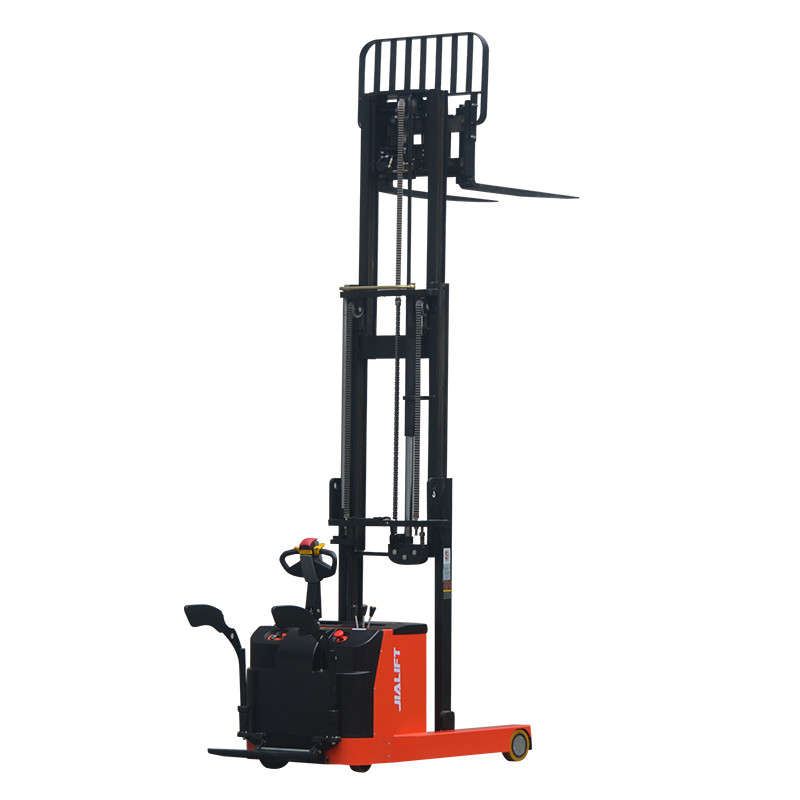

3kw Electric Reach Forklift 1300kg Lifting Height 3000mm

Name: 3kw Electric Reach Forklift 1300kg Lifting Height 3000mm
Brand: JIALIFT
Price: 1 USD

China 3kw Electric Reach Forklift 1300kg Lifting Height 3000mm wholesale

Brand Name : JIALIFT

Model Number : Q1530D

Certification : CE，UL

Place of Origin : CHINA

MOQ : 1

Price : Negotiation

Supply Ability : 200 units per day

Delivery Time : 3 days

Packaging Details : Pallet or container

Load Capacity : 1300kg

Battery : Lead acid/Li-lon

Drive motor,60 minute rating : 1.5kw

Lift motor rating at S3 15% : 3kw

Battery voltage/rated capacity : 24/270V/Ah

Battery weight (±5%) : 260kg

Noise level at operator 's ear : ≤70dB(A)

Contact Now

Electric reach stacker(Standing on) Q1530D Rated traction weight 1300kg Lifting height 3000mm Reach forklift series

Electric Reach Forklift Q1516D&Q1530D&Q1545D.pdf

Electric reach stacker(Standing on) Rated traction weight 1300kg Lifting height 3000mm Electric Reach Forklift

Product Features

1.Imported AC controller,Germany ZF vertical gearbox;
2.With self-diagnostic function,the handheld unit and the controller can display fault code,and quickly accurately troubleshoot;
3.You can choose full-free upgrading,which is convenient for vehicles to have restriction in the container or other ceiling;
4.The front wheel uses a large wheel design,the vehicle chassis is improved,the secondary wheel on both sides of the drive wheel provides a safe aid for the chassis,making the whole vehicle have both strong obstacles,and no stability.Operation is more flexible;
5.Standard the lifting limit function,when the fork is raised to the item,the system automatically cuts off the uplink power supply,smooth parking,effectively prevents the occurrence of "tweakstorm"accidents.

Characteristics
Model		Q1530D
Power unit		Electric
Operation		Standing on
Rated traction weight	Q(kg)	1300
Load centre	c(mm)	500
Axle centre to fork face	x(mm)	356
Wheel base	y(mm)	1354
Service weight with battery	kg	2010
Wheels/Tyres
Wheels type		PU
Driving wheel size	Φ×w(mm)	Φ230×75(PU)
Bearing wheel size	Φ×w(mm)	Φ210×70
Additional wheels(dimensions)	Φ×w(mm)	Φ149×60
Wheels,number front/rear (x =driven)		1,4/2
Track width	b10(mm)	620
Track width	b11(mm)	960
Dimensions
Mast/fork carriage tilt,forward/backward	a/b(°)	3/5
Height of mast,lowered	h1(mm)	2130
Free lift	h2(mm)	0
Lift	h3(mm)	3000
Height of mast,extended	h4(mm)	4040
Overall height(With handle	h14(mm)	1050/1450
Fork Height,Lowered	h13(mm	50
Overall length	l1(mm)	2252(950)
Length to fork face(fork length)	l2(mm)	1265
Overall width	b1/b2 (mm)	896/1042
Fork dimensions	s/e/l (mm)	35/100/950(1150)
Width of forks	b5(mm)	200-740
Distance Between Suporrts arms/loading surfaces	b4(mm)	786
Reach distance	l4(mm)	500
Min.Ground clearance	m2(mm)	44
Aisle width with pallet 1000 x1200 across forks	Ast (mm)	2790
Aisle width with pallet 800x1200 along forks	Ast(mm)	2840
Min.Turning radius	Wa(mm)	1670
Length across wheel arms	17(mm)	1767
Performance
Travel speed,laden/unladen	(km/h)	5.2/5.5
Lifting speed,with/without load	(mm/s)	95/130
Lowering speed,with/without load	(mm/s)	100/100
Maximum climbing ability,with/without load	(mm/s)	6/8
Service brake	(%)	Electromagnetic
Drive
Drive motor,60 minute rating	(kW)	1.5
Lift motor rating at S3 15%	(kW)	3
Battery voltage/rated capacity	(V/Ah)	24/270
Battery weight (±5%)	(kg)	260
Other
Type of drive control		AC
Noise level at operator 's ear	(dB(A))	≤70
