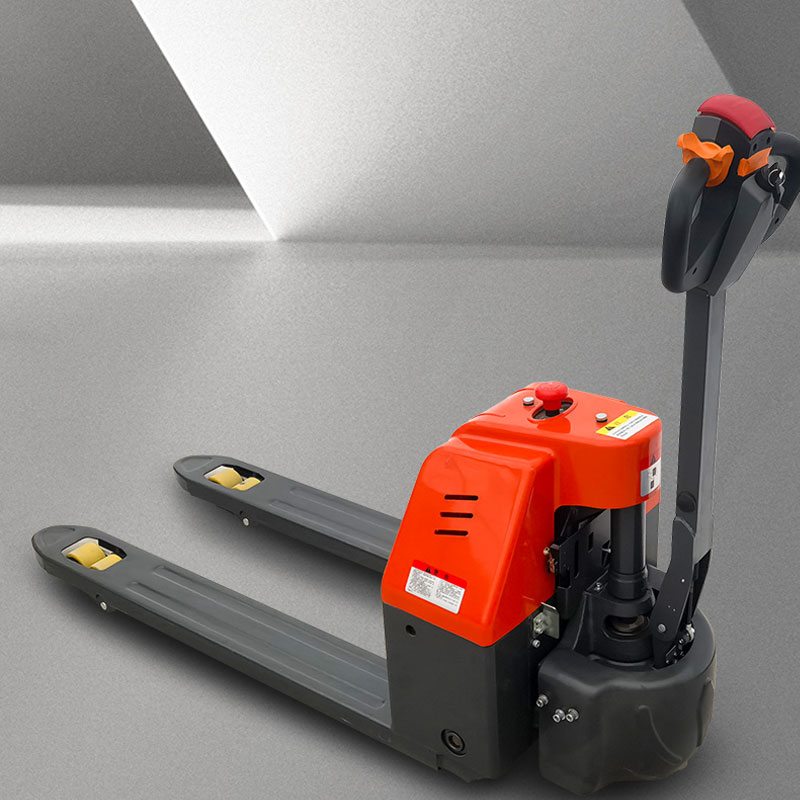

Electric pallet truck(Pedestrian) SL15L Rated traction weight 1500kg Lifting height 180mm
Electric Pallet Truck SL15&SL15L.pdf
Electric pallet truck(Pedestrian) Electric Rated traction weight 1500kg Lifting height 200mm Hauler series
Product Features
1.Small the radius of the turn, low center of gravity,excellent steering stability.
2.Operating handle Configuring high quality air pressure springs,loosen the handle, automatically resets, and durable.
3.Key switch, electric meter, up and down button, turtle speed switch are integrated in the operation handle, easy to operate.
4.Germany imported waterproof micro-power switch, adapt to cold, moist, dust,etc.
5.Permanent magnet motor drive system, small size, light quality,small loss, high efficiency.
6.Rugged metal protective cover effectively protects the drive system, and intimately protects the operator's foot from harm.
7.There is no need to increase the battery tank volume,optionally, the equivalent volume of high-density large-capacity lithium battery, and the battery life is doubled.
| Characteristics | | |
| Model | | SL15L |
| Power unit | | Electric |
| Operation | | Pedestrian |
| Rated traction weight | a (kg) | 1500 |
| Load centre | c(mm) | 600 |
| Axle centre to fork face | x(mm) | 944 |
| Wheel base | y(mm) | 1272 |
| Service weight with battery | kg | 185/225 |
| Wheels/Tyres | | |
| Wheels type | | PU |
| Driving wheel size | Φ×w(mm) | Ф210x70 |
| Bearing wheel size | Φ×w(mm) | Ф80x60 |
| Wheels,numberfront/rear(x= driven) | | 4/1x |
| Track width | b11(mm) | 410/535 |

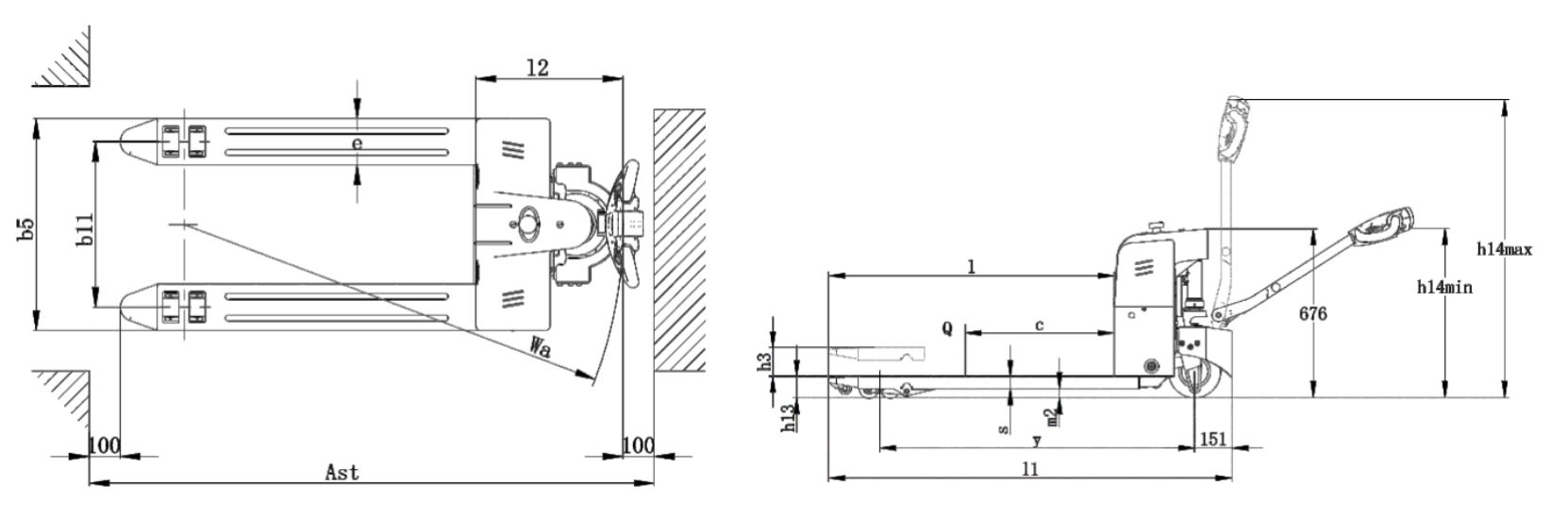

| Dimensions | | |
| Lift | h3 (mm) | 180 |
| Overall height(With handle | h14 (mm) | 790/1210 |
| lowered hength | h13 (mm) | 65 |
| Overall length | l1(mm) | 1624 |
| Length to fork face | l2(mm) | 474 |
| Overall width | b1/ b2 (mm) | 560/685 |
| Fork dimensions | s/e/l(mm) | 50/150/1150 |
| Width of forks | b5 (mm) | 560/685 |
| Min.Ground clearance | m2 (mm) | 15 |
| Aisle width with pallet 1000x1200 across forks | Ast(mm) | 1840 |
| Aisle width with pallet 800 x 1200 along forks | Ast (mm) | 1890 |
| Min.Turning radius | Wa (mm) | 1434 |
| Performance | | |
| Travel speed,laden/unladen | (km/h) | 4.2/4.5 |
| Lifting speed, with/without load | (mm/s) | 27133 |
| Lowering speed, with/withoutload | (mm/s) | 33/23 |
| Maximum climbing ability, with/without load | (%) | 6/10 |
| Service brake | | Electromagnetic |
| Drive | | |
| Drive motor, 60 minute rating | (kw) | 0.75 |
| Lift motor rating at $3 15% | (kw) | 0.8 |
| Battery voltage/rated capacity | (V/Ah) | 2x12/75 |
| Battery weight(+ 5%) | (kg) | 40 |
| Other | | |
| Type of drive control | | DC |
| Noise level at operator 's ear | (dB(A)) | ≤70 |
| Type of steering | | Mechanical |

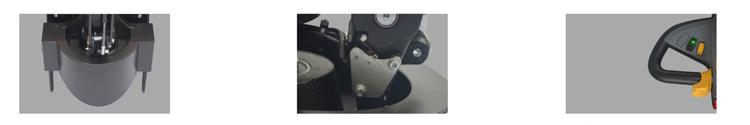

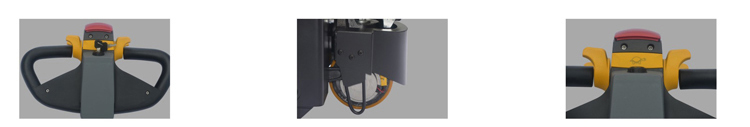

Key switches and electricity meter YONGCl motor drive system is with The turtle speed switch on the
integrated in the handle make the small size, light weight, low loss and handle makes low speed control
operation more convenient. high efficiency. more precise.
Solid metal shields not only protect Germany imported waterproof Four colored LED battery meter.
the drive system, but also protect micro-switches are applied in the
the operator's feet from injury. cold, damp, dusty and other harsh
environments.
